Windows Admin Center is a browser-based management tool to manage your servers, clusters, hyper-converged infrastructure, and Windows 10 PCs. You can deploy it anywhere you want. If you run on-prem, you can install it on a Windows Server running in your infrastructure, or you can also install Windows Admin Center on an Azure virtual machine (VM). In this post, we want to address scenarios where you have deployed Windows Admin Center on-premises, and you want to manage some Azure VMs. In this post, I am going to show you how you can manage Azure VMs with Windows Admin Center (WAC).
If you want to know more about Windows Admin Center in general, check out my blog post.
How to manage Azure IaaS VMs with your on-premises Windows Admin Center gateway
As mentioned before, you can also install a Windows Admin Center server running on Azure IaaS virtual machine, but more on that in another post. In this post, I will cover how you can connect to an Azure VM from your on-prem Windows Admin Center (WAC) installation. There are two ways you can connect from WAC to Azure VMs.
The first one would be using the public IP address of a virtual machine running in Azure. This would mean that you need to open the PowerShell remoting port in the network security group (NSG), to be able to connect. I wouldn’t recommend this scenario since this exposes your virtual machines to the public internet. However, if you want to know more about that solution, check out the Microsoft Docs.
What I wound recommend is that you use a VPN connection to connect to your Azure virtual network where your VM is running. However, I know that in a lot of cases, you might not have a Site-2-Site VPN connection to your Azure virtual network. To still be able to connect form Windows Admin Center to an Azure VM, you can use the Azure Network Adapter feature. The Azure Network Adapter will create a Point-2-Site VPN connection from your Windows Server to Azure. And we are going to use this feature on our WAC gateway, so the WAC gateway is able to reach the virtual machine in Azure.
First, you will need to add a new Azure Network Adapter. This can be done in the Network extension in Windows Admin Center. This will open up a wizard that will guide you through the setup and if needed also helps you to register WAC in Microsoft Azure.
The setup can take a while, depending on if you already have a VPN gateway in Azure or not. WAC will create all the necessary resources in Azure, and create the Point-to-Site VPN connection for you. Also, keep in mind that the VPN gateway is an additional resource and will have an additional cost.
Now you can add and connect to your virtual machine running in Azure, using the private IP address of the machine.

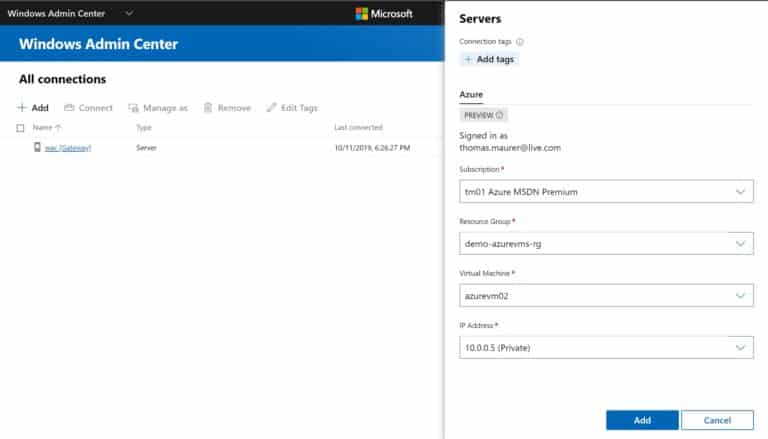

You add a server by directly entering the IP address or you can use the Add Azure Virtual Machine wizard, to discover the VM in your Azure subscription.
I hope this helps you to connect your Azure virtual machines security without exposing ports to the public internet. If you have a site-to-site VPN connection to your Azure virtual network, you can use this as well without the need of setting up Azure Network Adapter.
If you are interested in other Azure Hybrid services in Windows Admin Center, check out the following blog post including the video series: Configure Azure Hybrid Services in Windows Admin Center
Besides, you can also have a look at my other blog post about how to set up Azure hybrid cloud services.
- Connect Windows Admin Center to Azure Monitor
- Azure Update Management using Windows Admin Center
- Sync File Server with Azure File Sync in Windows Admin Center
- Configure Azure Site Recovery from Windows Admin Center
- How to Setup the Azure Network Adapter
- How to Setup Azure Backup in Windows Admin Center
If you want to download Windows Admin Center, check out the download page. If you have any questions, feel free to leave a comment.
